Model NDG-431 Density Gauge

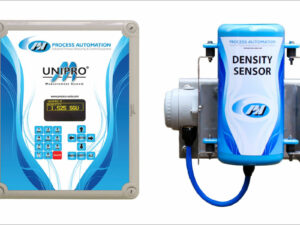

The Density Sensor set comprises:

  • Source holder with fitted gamma source
  • Gamma detector in housing
  • Pipe clamp assembly
  • UNIPROM Transmitter/Indicator

Source Holder Assembly

The source holder is a lead filled, steel fabrication designed to exceed the requirements of the South African Department of Health / Directorate Radiation Control. The isotope standardly used is Caesium137, which provides a good balance between measurement precision, longevity and cost. Other isotopes may be required for special applications.

Depending on the source holder model, the shutter mechanism may be either a Slide type or Rotary type. The standard shutter mechanism is a two position device – “ON (Measure)” & “OFF” (Closed). Alternative (optional) source holder models can be provided which feature either three- or four-position shutter mechanisms. These additional shutter positions provide Calibration References for simplified calibration/maintenance checks.

A single calibration point alone cannot reliably define the system calibration. At least two points are required. Our unique four-position shutter assembly provides for both a Zero reference and an on-scale Span calibration reference. Servo actuation of the source shutter is also possible to allow automated calibration checking.

I-Tag®

The source holder may be equipped with our optional electronic Isotope Tag (I-Tag®) which removes the problems encountered in traditional stamped stainless steel tags, which could become illegible or lost. The I-Tag® allows for a far safer & more reliable system of reading Radio Nuclide & Source Holder information. Gamma Detector Assembly (Model DSA-1) The detector housing bolts to the Pipe Clamp.

Gamma Detector Assembly (Model DSA-1)

The detector housing bolts to the Pipe Clamp. An optional safety shield is available, to significantly reduce through radiation. The detector is scintillation type. Features of this detector are:

  • Factory sealed detector (No access required) – Termination via external junction box.
  • Greater sensitivity.
  • Lower isotope activity.
  • Lower radiation levels – greater margins of safety.
  • Auto (electronic) shut down under empty pipe conditions (to protect the detector from over radiation damage).
  • High noise immunity, RS-485 type output.

Pipe Clamp Assembly

The pipe clamp bolts around the process pipe and provides attachment points for the Density Detector Assembly and Source Holder. The clamps and the mounting bolts are from stainless steel.

UNIPROM

The UNIPROM transmitter provides all the outputs. The UNIPROM may be located at any convenient location for termination/indication, and may be up to 300m from the Detector. Standardly the UNIPROM is supplied “Blind” using the PTU for Calibration/Maintenance. Optionally UNIPROM may be equipped with a local keypad & display.
